Cat.8 U/FTP Braided Outdoor Flat Ethernet Cable
▌40Gbps ultra-fast transmission: improves long-term stability in outdoor environments, suitable for all kinds of cabling setups.
▌Corrosion-resistant reinforced braid: thickened foil shielding and coarse mesh braid strengthen the flat cable's inner and outer protection.
▌Compliant, high-performance transmission structure: pure copper conductors meeting EU and UL certification standards ensure superior high-performance conduction.
▌Enhanced weather and UV resistance: durable UV-resistant design withstands sun and rain, preventing the cable from oxidizing and becoming brittle.
Select options to see price
Overview
| Product Features |
■ Cat.8 outdoor braided cable resists corrosion, aging, UV, water and weather, with excellent flexibility, suitable for both outdoor and indoor use.
■ 26AWG pure copper conductors, twisted in pairs to form 4 twisted pairs (8 cores). Each pair is wrapped in 35μ thickened foil, effectively reducing EMI/RFI interference, boosting twisted-pair transmission performance, achieving high-speed transfer, blocking external electromagnetic interference, and stabilizing the network signal.
■ Cat.8 delivers ultra-fast multi-gigabit network transmission speeds, suitable for all network environments, and backward compatible with Cat.5e/Cat.6/Cat.6A/Cat.7 specifications.

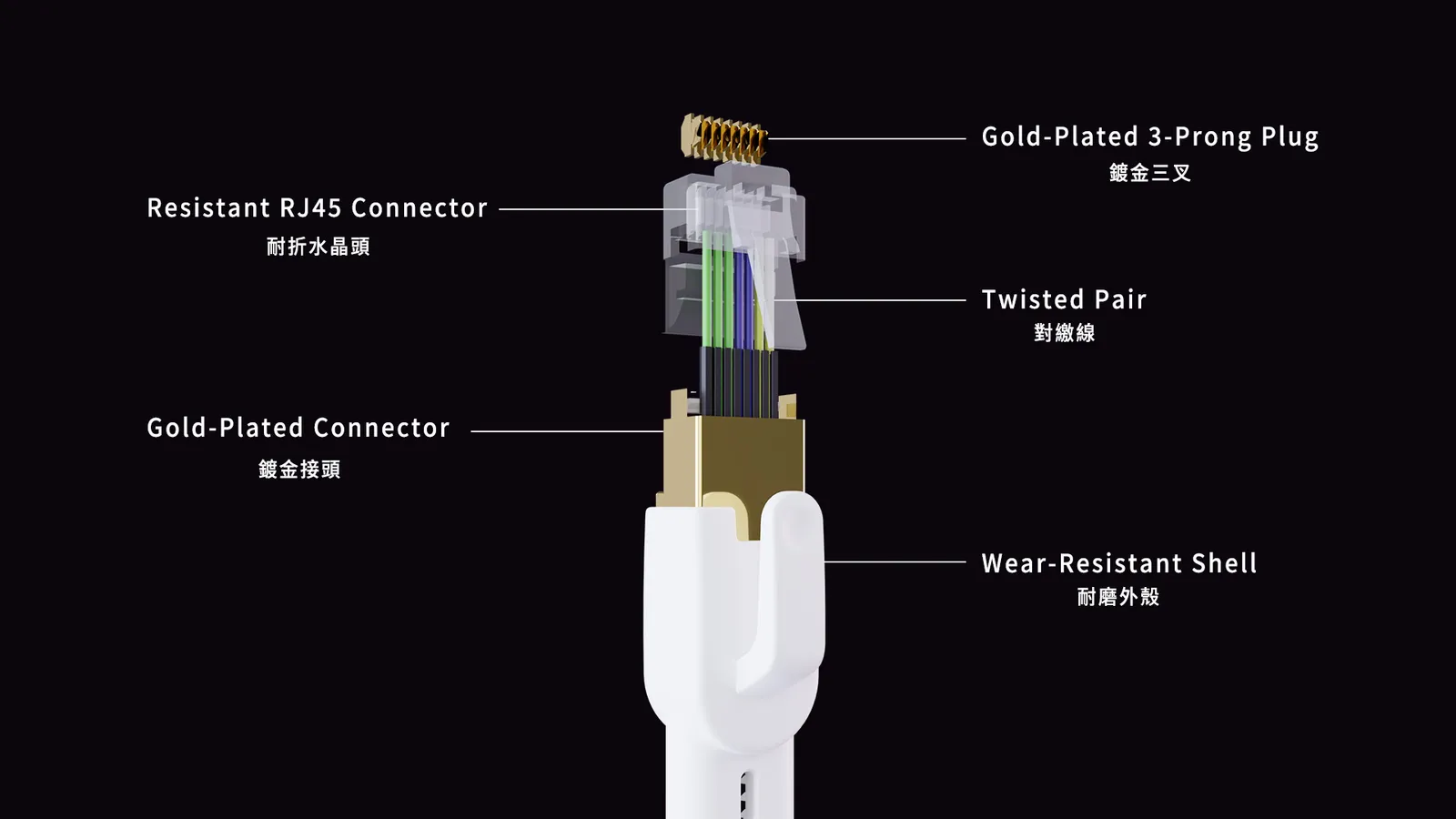

■ The connector is a copper-shell gold-plated metal shielded connector that resists oxidation and rust. The gold-plated contacts use a thickened three-prong copper shell meeting the 50μ standard, fully matching Cat.8 high-speed transmission performance, and comply with EU RoHS standards and EU REACH SVHC substance-of-concern requirements.
■ The twisted pairs are twisted using three-core torsion-free equipment, with each pair using a different twist pitch for more stable signals, minimizing crosstalk between pairs.
■ The connector features a patented unbreakable RJ45 plug design for greater mating durability, with a bend-resistant latch that is sturdy and resistant to breaking or snapping.
■ Includes a dust cover to protect the connector, enhancing durability and extending service life.
■ Passed U.S. FLUKE testing, meeting ANSI/TIA-568.2-D Cat8 and ISO/IEC 11801 Class I network standards.
■ The flat cable is ideal for routing along floors or desktops, fitting flexibly around corners and through door gaps, or hiding under desk edges and carpets, making it easy to organize and store while keeping spaces tidy and clutter-free.
■ Compatible with computers, laptops, modems, routers, network switches, PS3, PS4, Xbox, Switch, network printers, projectors, monitors, and other devices.
| Specifications |
Transfer speed: up to 40Gbps (increases or decreases depending on cable length)
Bandwidth: up to 2000MHz (increases or decreases depending on cable length)
Cable specification: Category 8
Outer jacket: PVC (RoHS and REACH compliant material)
Finished cable outer diameter: 3.05*9.25±0.20mm
Conductor insulation: FOAM-SKIN PE (1.05±0.05mm)
Cable structure: single-strand extra-thick pure copper conductor + foil shielding
Conductor structure: 26AWG (7/0.16 pure copper)
Connector specification: copper-shell gold-plated metal shielded connector (RoHS and REACH compliant material)
8P8C RJ45 plug mating cycles: 3,000+ (minimum)
8P8C RJ45 plug latch bend cycles: 1,000+ (minimum)
Compatible with RJ45 Ethernet cabling and ADSL/CATV/fiber optic communication applications
RJ-45 pin layout follows the EIA/TIA T568B standard
