Cat.8 U/FTP Ultra-High-Speed Flat Ethernet Cable
| Product Specifications |
■ Transfer rate: up to 40Gbps (increases or decreases depending on cable length used)
■ Bandwidth: up to 2000MHz (increases or decreases depending on cable length used)
■ Cable spec: Category 8
■ Outer jacket: PVC (RoHS- and REACH-compliant material)
■ Finished cable outer diameter: 3.05*9.25±0.20mm
■ Conductor insulation: FOAM-SKIN PE (1.05±0.05mm)
■ Cable construction: single-strand extra-thick pure copper wire + aluminum foil shielding
■ Conductor construction: 26AWG (7/0.16 pure copper)
■ Connector spec: copper-shell gold-plated metal shielded connector (RoHS- and REACH-compliant material)
■ 8P8C connector mating cycles: 3000+ (minimum)
■ 8P8C connector contact spring flex: 1000+ (minimum)
■ Compatible with RJ45 Ethernet cable and ADSL/CATV/fiber optic communication applications
■ RJ-45 pin layout follows EIA/TIA T568B standard
Select options to see price
Overview
■ Conductors are 26Awg pure copper cores; each pair of two conductor cores is stranded into one twisted pair, for 4 pairs / 8 cores total, all wrapped in 35μ thickened aluminum foil, effectively reducing EMI/RFI interference, enhancing twisted-pair transmission performance for high-speed performance, blocking external electromagnetic interference, and stabilizing network signal.

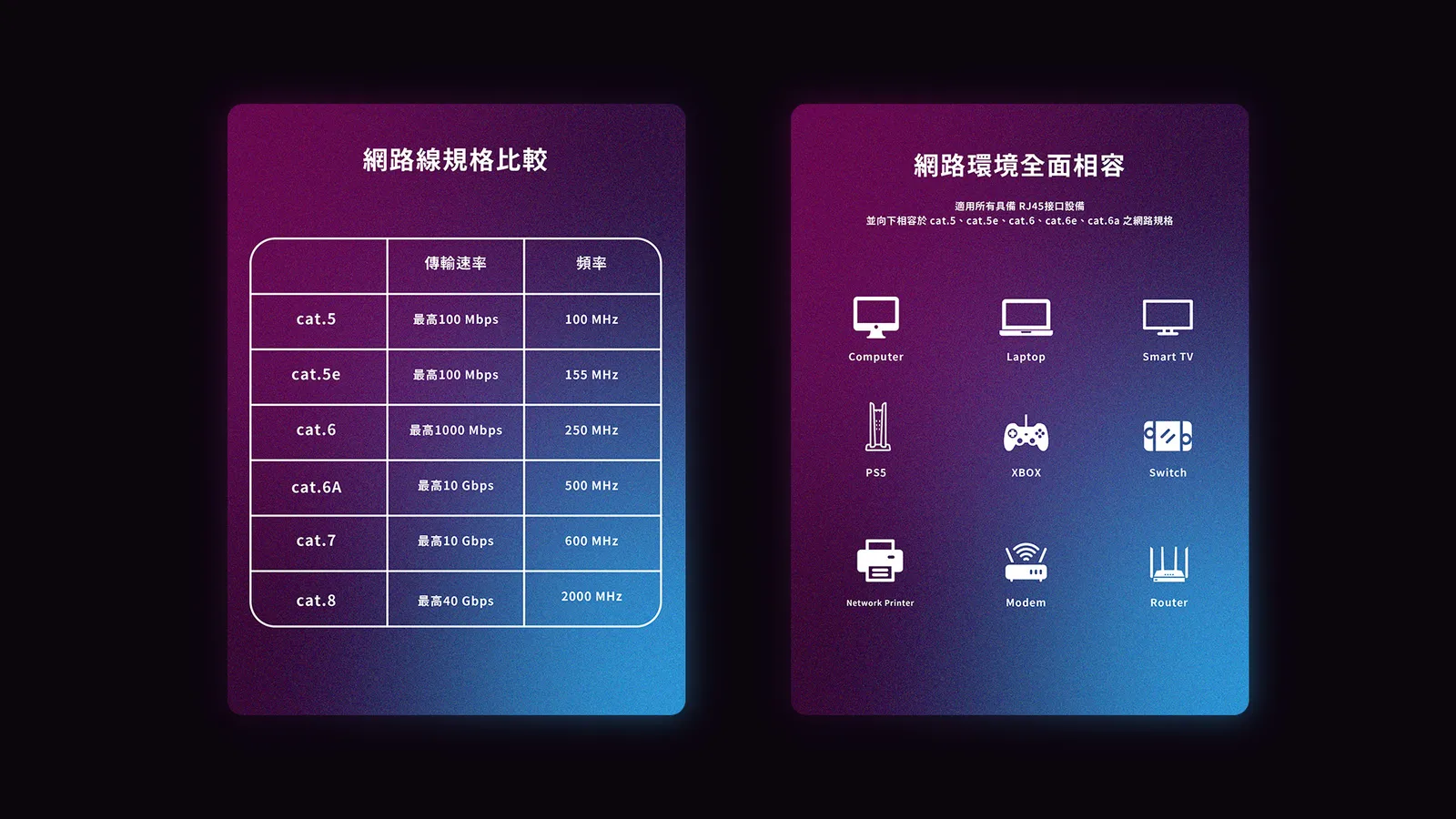

■ CAT.8 ultra-high-speed network transfer, suitable for all network environments, and compatible with Cat.5e/Cat.6/CAT.6A/Cat.7 specifications.

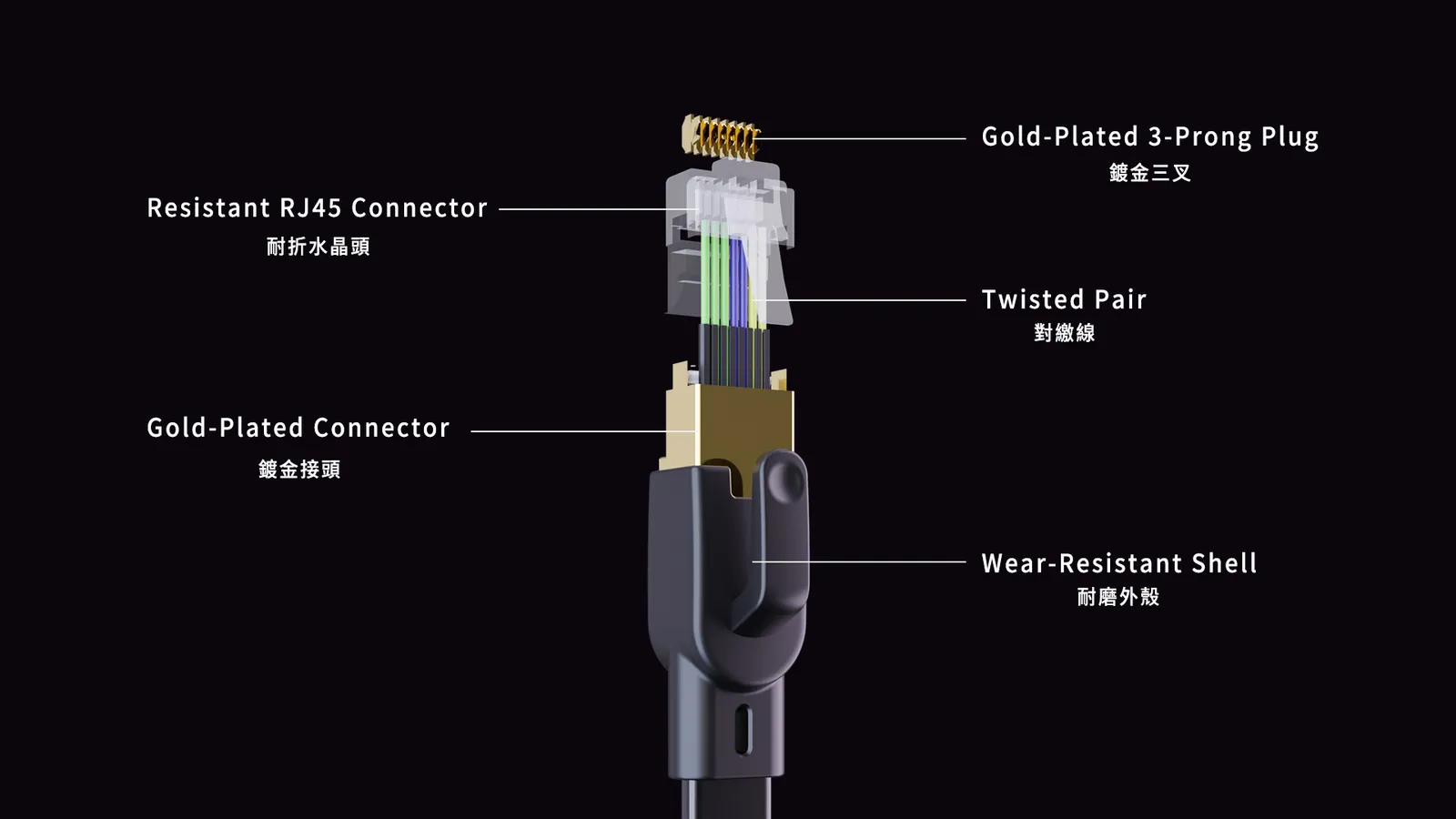

■ Connector made of copper-shell gold-plated metal shielded connector, corrosion- and rust-resistant, with thickened trident copper-shell gold-plated contacts up to 50μ standard, fully matching Cat.8 high-speed transmission performance, and complying with EU RoHS standards and EU REACH SVHC substances-of-very-high-concern usage standards.
■ Twisted pairs are formed using three-strand non-twist equipment, with each pair using a different twist pitch for a more stable signal, minimizing interference between pairs.
■ Patented unbreakable connector design offers more mating cycles and a flex-resistant contact spring, sturdy and resistant to breakage or cracking.
■ Includes a dust cover to protect the connector, enhancing durability and extending service life.
■ Tested by FLUKE (USA), complies with ANSI/TIA-568.2-D Cat8 and ISO/IEC 11801 Class I network standards.
■ The flat cable is ideal for routing along floors or desktops; it flexes easily around corners and through door gaps, or tucks under desk edges and carpets for tidy, clutter-free cable management.
■ Suitable for computers, laptops, modems, routers, network switches, PS3, PS4, Xbox, Switch, network printers, projectors, monitors, and other devices.
